Specification
| Parameter | Value |
|---|---|
| Weight | 2.2 kg without antennas |

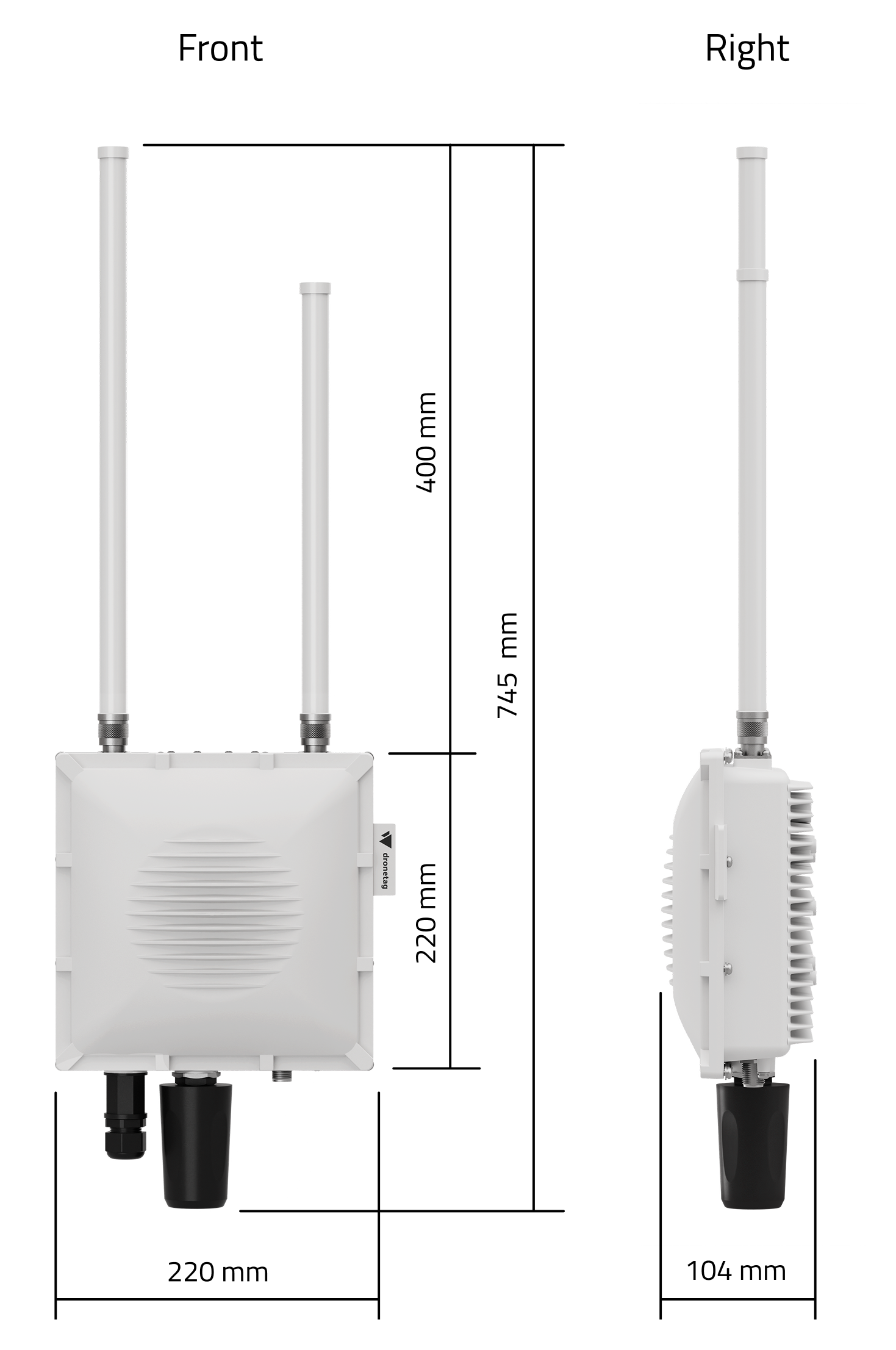

| Dimensions | 220×345×104 mm without antennas |
| Power Supply | PoE + 802.3 at, PoE 802.3 af compatible |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) ambient |
| Detection Range | Up to 10 km with Omnidirectional ant., up to 25 km with Directional ant. |
| Weather Protection | IP67/NEMA-6 |
| Remote ID Technologies | Bluetooth 4, Bluetooth 5 Long Range, Wi-Fi Beacon, Wi-Fi NAN |
| Supported Frequencies | 2.4 GHz Bluetooth, 2.4 GHz + 5 GHz Wi-Fi |

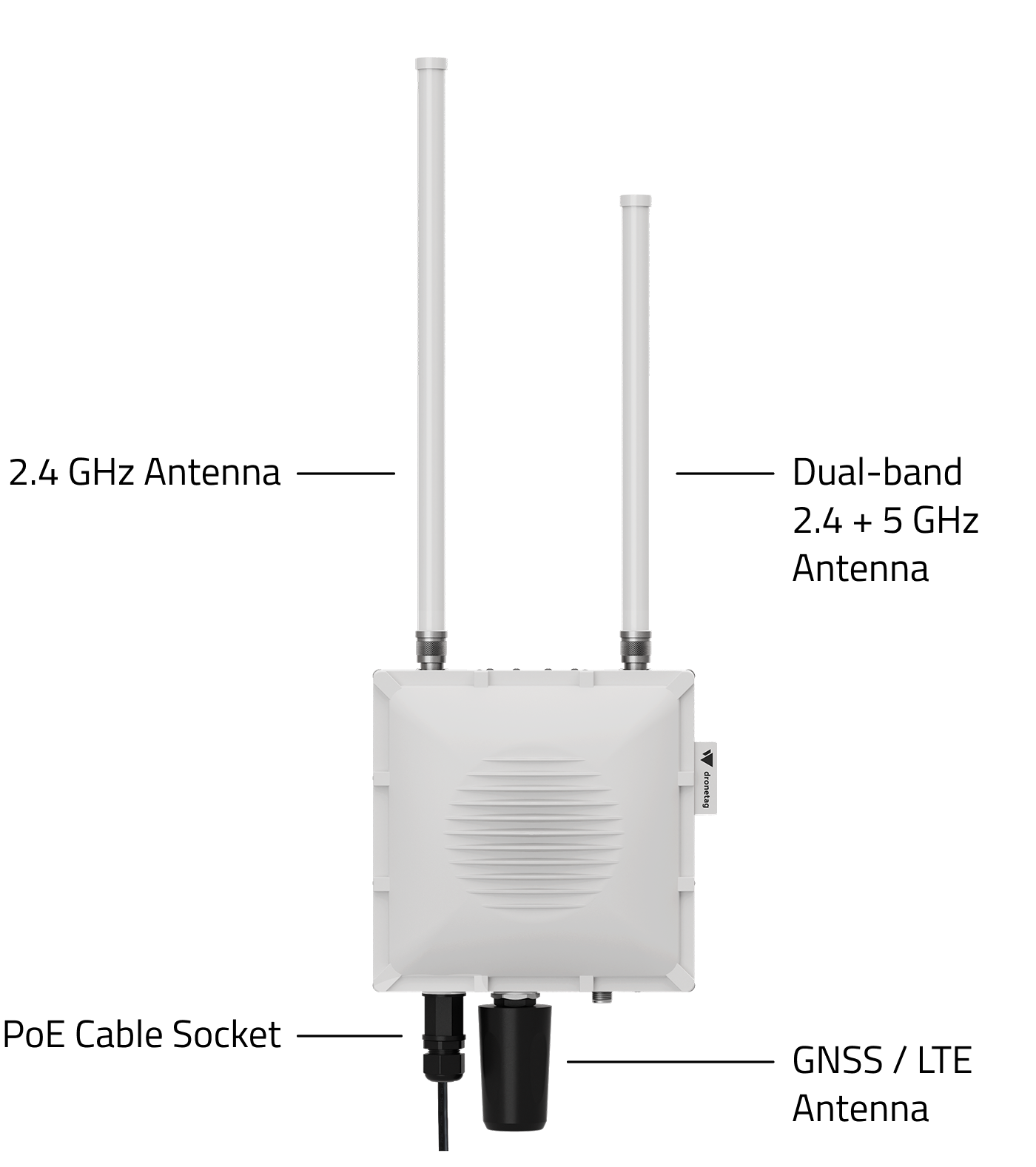

| Antenna connectors | 2x to 5x N-type female connector for Remote ID (number of connectors may differ, depending on Scout configuration) 1x RJ45 waterproof jack |
For further details or inquiries, contact Dronetag Support.
PoE injector
The PoE injector is a device that allows you to combine power and network connectivity to your PoE enabled devices using the same Cat5/5e or Cat6 twisted pair cable.
If you want to use your own PoE switch, it must conform to IEEE 802.3af/at and support at least 0.5A at 48V.
The PoE injector should be placed indoors. It has to be placed in a dry area without extreme temperatures (intended for home temperatures only - 0 to 40˚C). The PoE injector is not waterproof.
PoE Features:
- Input: 100-240 V AC (50~60 Hz)
- Output: 48.0 V DC 0.5 A
- Overcurrent protection
- Supports 10/100 Mbps Ethernet
- 92.5x47x29.8 mm (±1 mm)
Connection to Scout should be configured to 100Mbit Full Duplex.
Dronetag s.r.o. carries no responsibility for wrong usage or wrong installation.
LTE version of Dronetag Scout, with ordered connectivity, includes micro-SIM card, which is already plugged in the device.
When there is no connectivity ordered, Scout comes with no micro-SIM card plugged in the device and the user needs to plug in their own micro-SIM card. Here is a Step-by-Step Guide on how to do it.
